DIY Gas Cylinder Replacement for Office Chairs

If your chair’s gas lift is acting up, you don’t necessarily have to replace the whole chair. With a few basic tools, you can often swap the gas cylinder yourself and restore proper height adjustment. This guide walks through how to choose the right replacement gas lift, how to remove the old one safely, and the key precautions to watch for during installation.

What Is an Office Chair Gas Lift (Gas Cylinder), and How Does It Raise and Lower the Seat?

An office chair gas lift (also called a gas cylinder) is the component that supports the chair and allows the seat height to be adjusted. Inside, it’s basically a sealed metal cylinder that holds high-pressure nitrogen, along with a piston and piston rod, a small valve assembly (opened by a valve pin), and the seals that keep everything airtight.

There’s also a small amount of oil inside to lubricate the moving parts and smooth out the motion. Most height-adjustable office and ergonomic chairs use this gas lift to support your weight and set the seat height.

The height lever simply opens and closes that valve. With the valve closed, the pressure is trapped inside the cylinder, so the piston rod stays put and the seat height doesn’t change.

Pull the lever to open the valve, and the cylinder can rebalance internally, letting the seat move. If your weight is greater than the gas lift’s upward force, the chair sinks; if the load is lighter, it rises.

Let go of the lever, the valve closes, and the chair locks at the new height.

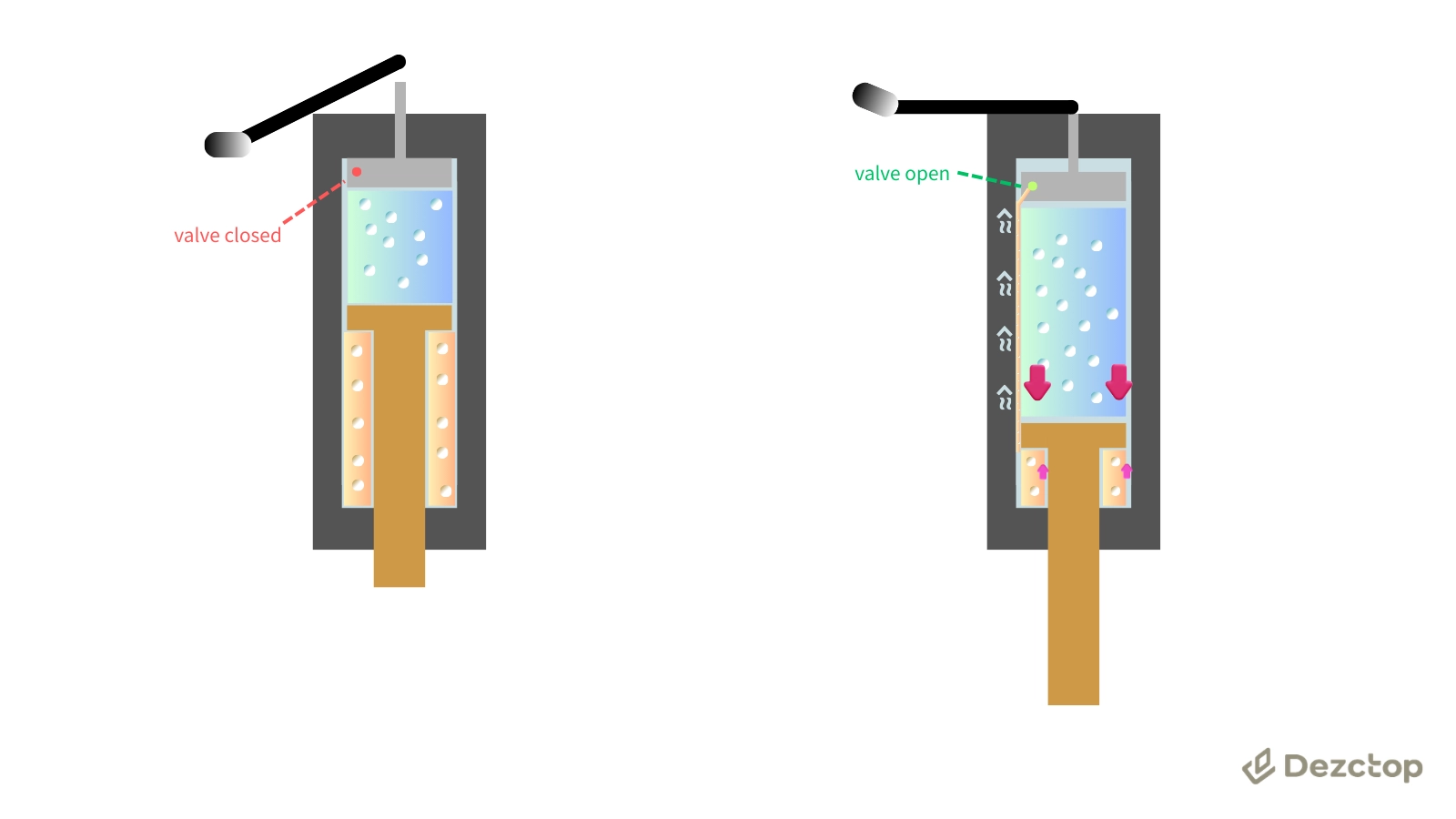

As shown in the diagram, pulling the adjustment lever presses the valve pin and opens the valve, which releases the height lock. Once the valve is open, the cylinder can rebalance internally and the seat can rise or sink based on the balance between body weight and gas pressure. Let go of the lever, and the valve closes to hold the seat at that position.

Why Do Gas Lifts Fail? Common Causes and Usage Habits That Wear Them Out

Why do gas lifts fail? Common height-adjustment problems usually come down to two things. One is a worn or damaged seal that lets the nitrogen gas slowly leak out, so the chair can’t hold pressure and may no longer stay at a fixed height.

The other is a control issue: if the height lever or linkage is bent or knocked out of position, it may not press the valve pin correctly, so the valve won’t open or close as intended and the chair won’t adjust smoothly.

Consistently exceeding the gas lift’s rated load (being over the weight limit), repeated heavy impacts, or using low-quality gas lifts with unclear specifications or no recognized safety/quality certification can also accelerate wear and lead to early failure.

(Learn More: Office Chair Keeps Sinking? Causes and Fixes That Actually Work)

How Long Does a Gas Lift Last? The Factors That Affect Lifespan Most

Most chair gas lifts last around 5–10 years, but the real lifespan depends on how the chair is used and how much weight it regularly supports. In most cases, wear shows up gradually over the years rather than all at once.

If the chair starts sinking on its own or won’t stay locked at a set height, that usually means the seals or the valve mechanism have aged to the point where the cylinder can’t hold pressure reliably. At that stage, repairs typically aren’t worth it, replacing the gas lift is usually the more practical fix.

A few factors tend to make the biggest difference:

Staying near (or over) the rated load

Using the chair close to its weight limit for long periods puts more stress on the seals. Dropping into the chair or slamming down on the seat can put a sudden jolt through the cylinder. That kind of impact briefly drives the internal pressure up and stresses the seals and valve parts, which can speed up wear and increase the chance of leaks over time.

Height adjustments matter, too. Every time you pull the lever, you’re cycling the valve and moving the piston. If the chair is shared and the height is changed constantly, those extra cycles add up faster. If you set the height once and mostly leave it alone, the gas lift usually lasts longer.

Environment and exposure

Moisture, salt in the air, and leftover cleaning chemicals can increase the risk of corrosion. Dust, hair, and small debris can work their way into moving areas and act like fine grit, speeding up wear. Chairs placed near windows, balconies, or dusty floors often show bigger differences in lifespan.

Build quality of the gas lift

Durability often comes down to how well the cylinder is made, seal materials, surface finishing, and how precisely the parts fit together. The amount of oil inside and how well the damping is designed also matter, since they affect lubrication and smoothness.

Finally, good factory testing for airtightness helps prevent slow leaks and keeps the valve mechanism working consistently without sticking.

Are Gas Lifts Expensive?

Gas lifts usually aren’t very expensive. For most standard office chairs and computer chairs, a replacement gas lift typically costs around $20–$50, depending on build quality, weight rating, and size.

As a rough guide, Class 3 gas lifts are often in the $20–$30 range, while Class 4 models commonly run $20–$50.

Do Gas Lifts Come in Different Quality Levels? What the Differences Usually Are

Yes. Gas lift “classes” are commonly discussed under German DIN standards (Deutsches Institut für Normung), with DIN 4550 often cited as the reference. In the market, you’ll usually see Class 1 through Class 4, and the differences come down to tube thickness, load capacity, stability, and durability.

Class 1 is a lightweight, basic cylinder. The outer tube is often around 1.0 mm, and it’s generally intended for loads under 80 kg. You’ll most often find it on very low-cost, disposable office chairs.

Class 2 is an entry-level option. The outer tube is commonly around 1.2 mm, with a typical suggested load under 100 kg. If the chair is adjusted frequently over the long term, wear tends to show up sooner.

Class 3 is the most common “mainstream” choice today. The outer tube is often around 1.5 mm, and the inner tube around 2.3 mm, typically made from thicker seamless steel tubing. A common suggested load range is 100–120 kg, and it’s widely used in standard office chairs.

Class 4 is often treated as the top tier. The outer tube is commonly around 1.8 mm, and the inner tube around 2.5 mm, also using thicker seamless steel tubing.

Many Class 4 cylinders use a QPQ (Quench–Polish–Quench) surface treatment, which increases surface hardness and wear resistance and typically gives the cylinder a black finish. Load ratings are often listed around 150–250 kg, with improved stability and higher safety margins. In well-made designs, service life can exceed 10 years.

To meet stricter certification requirements such as TÜV (often referenced with DIN 4550 / EN 16955) or BIFMA, Class 3 and Class 4 cylinders are commonly built with higher-quality seal packs and filled with high-purity nitrogen (often 99.9%).

The goal is to reduce leakage, keep the internal oil from degrading as quickly, and maintain consistent support after many thousands of lift cycles, improving both safety and long-term durability.

If your chair has other issues (wobble, a loose tilt mechanism, or a worn-out cushion), swapping the gas lift may only be a temporary fix. In that case, upgrading to an ergonomic chair with a Class 4 cylinder can be a better long-term solution. Dezctop chairs come standard with Class 4 gas lifts and are tested to the ANSI/BIFMA X5.1 standard for office seating durability and stability.

Is Replacing a Gas Lift Dangerous? When It’s Better to Call a Pro

Swapping a gas lift isn’t complicated, but it does take a little technique, and it’s worth treating it like a real repair job. Wear safety glasses and grippy work gloves, and expect to use a hammer to tap the cylinder loose with firm, controlled hits.

If you don’t have the right tools, or the cylinder is stuck in place and won’t move, it’s usually better (and safer) to have a professional handle it.

How to Replace a Gas Lift (Tools, Steps, and Safety Tips)

Tools and parts you’ll need

You’ll want grippy work gloves, safety glasses, a flathead screwdriver, a hammer, WD-40 (or a penetrating oil), and a replacement gas lift that matches your chair’s size/specs.

Safety note: Wear safety glasses and non-slip gloves before you start. When a gas lift breaks free, parts can shift suddenly. If your face is too close, you can injure your eyes.

Step-by-step replacement

Step 1: Separate the gas lift from the chair mechanism

Start by removing the seat mechanism (the metal plate under the seat) from the gas lift. Spray penetrating oil where the gas lift meets the underside mechanism and let it sit for a few minutes. Then use a hammer to tap around the metal hub on the mechanism until it loosens and slides off the cylinder.
If you have a pipe wrench, you can also grip the gas lift and twist gently while pulling the mechanism upward.

Step 2: Remove the gas lift from the base

Next, separate the gas lift from the base (the star base with the wheels). Apply penetrating oil at the joint and give it time to work—this can take anywhere from a few minutes to a few hours if there’s heavy rust. Then tap around the metal area surrounding the cylinder to work it loose from the base.

You can swap the order (often easier)

These two steps can be done in either order. Many people find it easier to remove the base first, then the seat mechanism, because you can use the weight of the seat to help pull parts apart.

Alternative order:

1. Flip the chair upside down. Spray the joint where the gas lift meets the base. Tap around the metal collar area near the base (avoid striking the center of the cylinder), and lift the base upward slightly as you work it loose.



2. Then remove the cylinder from the seat mechanism by tapping around the connection point. If you see rust, reapply penetrating oil and wipe away loosened residue.



Step 3: Install the new gas lift

Before buying, confirm the replacement cylinder matches your chair’s dimensions. Insert the new gas lift into the seat mechanism.

Step 4: Reassemble and test

Reattach the base, flip the chair upright, and sit down to test height adjustment. Raise and lower the seat a few times to make sure everything moves smoothly and locks properly.

Simple maintenance tip

Every so often, cycle the chair up and down. Regular movement helps keep the internal mechanism operating smoothly and reduces “sticking” from long periods at one height.

FAQ

What if the gas lift won’t come out?

Before you try again, apply a penetrating oil like WD-40 around the joint where the gas lift is stuck. The goal is to loosen rust and built-up grime.

Depending on how seized it is, you may need to wait anywhere from a few minutes to a few hours before attempting removal again. If it still won’t budge, you can also look for a dedicated cylinder replacement kit to make the job easier. If it still won’t budge, it’s best to call a professional.

How do you figure out your gas lift size/specs?

If the gas lift still works, raise the chair to its highest setting and lower it to its lowest, then measure the difference. That gives you the stroke (the amount of travel).

If the gas lift no longer works, remove it and measure the overall length and the tube diameters. Use those measurements to match the correct replacement cylinder.

What gas lift size is common for bar stools?

For most bar stools, a common stroke is around 260 mm (about 10 inches). The outer tube is typically 30–40 cm long (a standard office chair cylinder is often closer to 20 cm).

What gas lift size is common for gaming chairs?

Gaming chairs commonly use Class 4 gas lifts to handle the larger chair weight and higher loads. Typical stroke lengths are 80 mm or 100 mm.

How can you tell what class your gas lift is?

Check the cylinder for stamped markings. These often include the class, manufacturer, and certification marks. If you see labels like TÜV, SGS, BIFMA X5.1, or EN 1335, it usually indicates a cylinder that meets at least Class 3 standards. If there are no markings at all, the cylinder may be lower grade—consider upgrading to a Class 3 or Class 4 gas lift.
