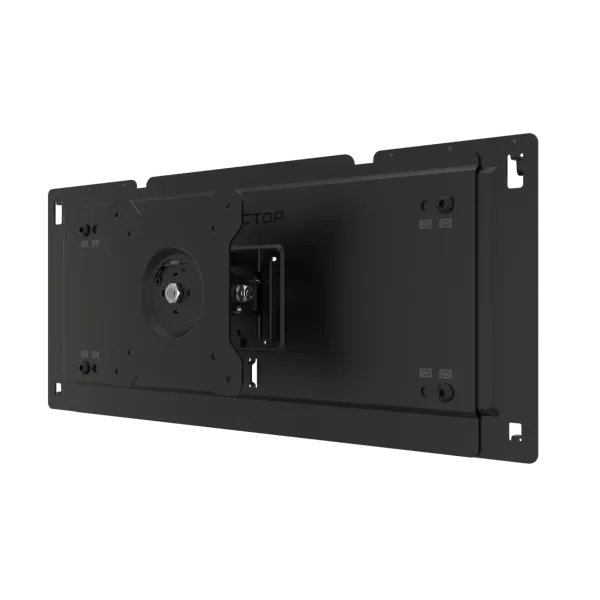

D-Board Monitor Mount
Monitor placement is as important as the model you choose when looking to provide ensure comfortable and productive use. Holding up to 32-inch monitors, our VESA-compatible D-Board Monitor Mount tilts, swivels, and pivots to get your displays in the optimal position for superior in-game performance and comfort. If you lack clearance for a swing monitor arm, or reluctant to drill into a wall the DEZCTOP monitor mount quickly and easily affixes to the D-Board to provide a secure mounting for one or more monitors.
PRODUCT FEATURES
High Strength Durable Design
Our monitor mounts are built to the highest standards. The Mount itself is constructed of high-strength steel, and tested through extensive durability adjustments with a proven lifespan exceeding 5,000 consecutive cycles.
20° Swivel
Flexibility in monitor placement with flexible 20° swivel.
Easy Spin System for 90° Rotation
Quick and easy 90° rotation to portrait mode, ideal for coding and graphical design.
15° Tilt
Fine-tune tilt to perfectly position your monitors viewing angle.
Improved Eye Comfort and Focus
Effortlessly lift and reposition your displays at will for a better viewing experience and comfort for long hours of play.
Deeper Workstation Surface

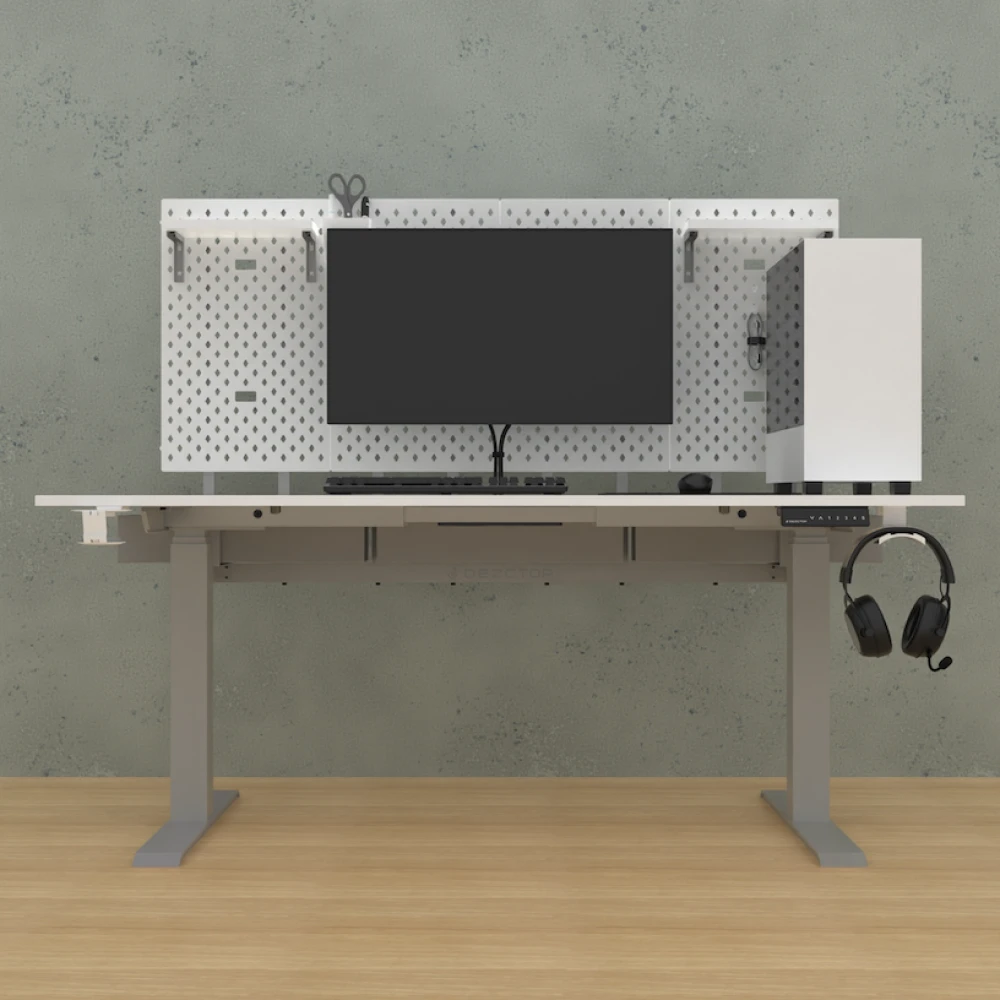

With the trend in larger monitors to provide more immersion, desks often force monitors to be positioned too close to the viewer, meaning you unconsciously move back your chair. The DEZCTOP monitor mount extends viewing distance by design placing monitors a typical 3.9" farther back than a traditional desk when D-Board mounted. This results in a more comfortable viewing and gaming experience.
Convenient Cable Management
Secure your cables effortlessly with the devil's felt tape. Effortlessly guide your cables through designated slots in the Bifrost series desk, maintaining a clean and organized desktop space.
Easy and Fast Installation
Featuring VESA standard holes of 75x75 and 100x100mm, the D-Board monitor mount simplifies installation. Its back panel hole design facilitates easy monitor mount attachment. Suitable for various scenarios, it requires no drilling or wall studs.
Note:For large curved screens beyond 1800R, the forward-shifted center of gravity requires a L version. Additionally, allow for a 3 kg (6lbs) load capacity range due to the forward center of gravity. For instance, if a curved screen weighs 7 kg (15.7 lbs), consider a L version ranging from 12-15 kg7 kg (26.5-33.1 lbs).
You May Also Like

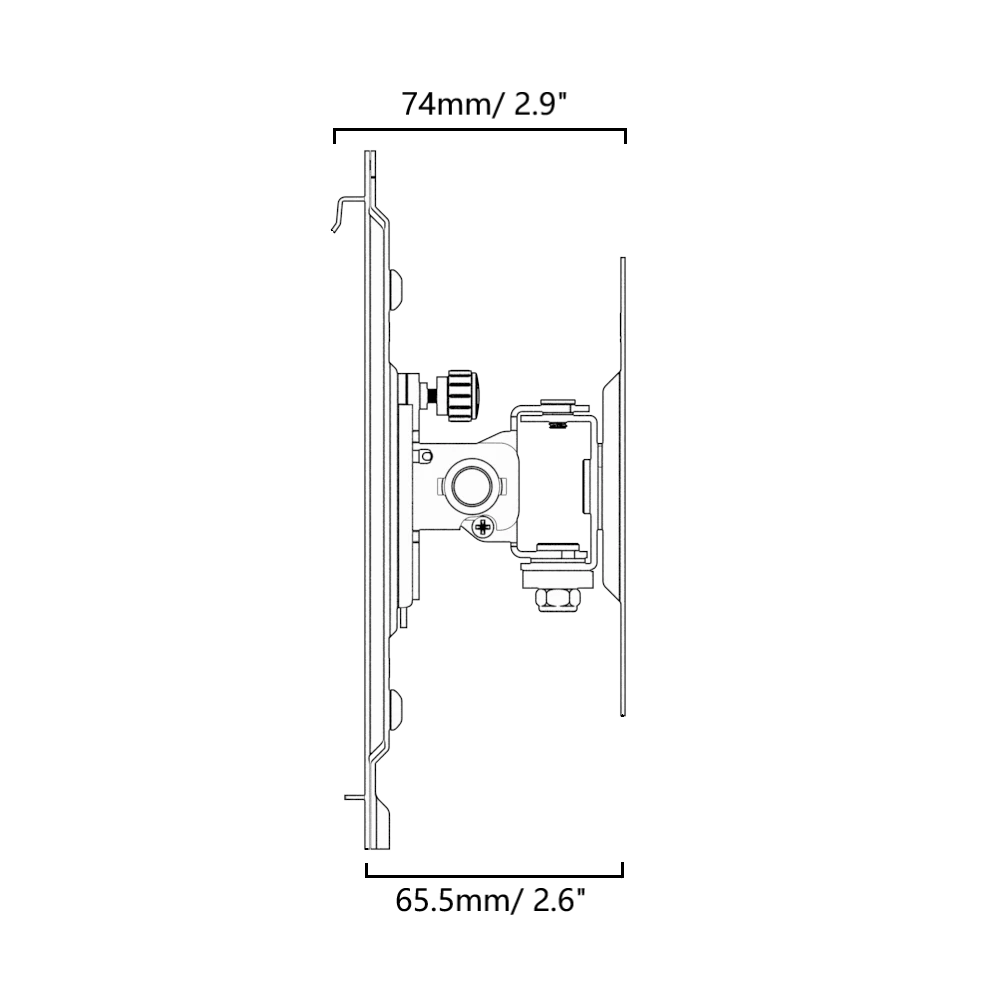

D-Board Monitor Mount - M
Model Number
DA-DBMONT-BK1
EAN
4710578830225
Dimensions (W x D x H)
15.7 x 2.9 x 6.9in (400 x 74 x 175mm), while mounting across two boards
16.8 x 2.9 x 6.9in (426 x 74 x 175 mm), while mounting on a single board
Screen Size
Up to 32”(over 1800R screen curvature is not applicable)
Weight Capacity
Within 15.4 lbs (7 kg)
Swivel (Left/Right)
20°
Tilt (Down)
15°
Pivot
90° (Counterclockwise)
Compatibility & Max. Load
VESA MIS-D: hole pattern 100 x 100, 75 x 75mm

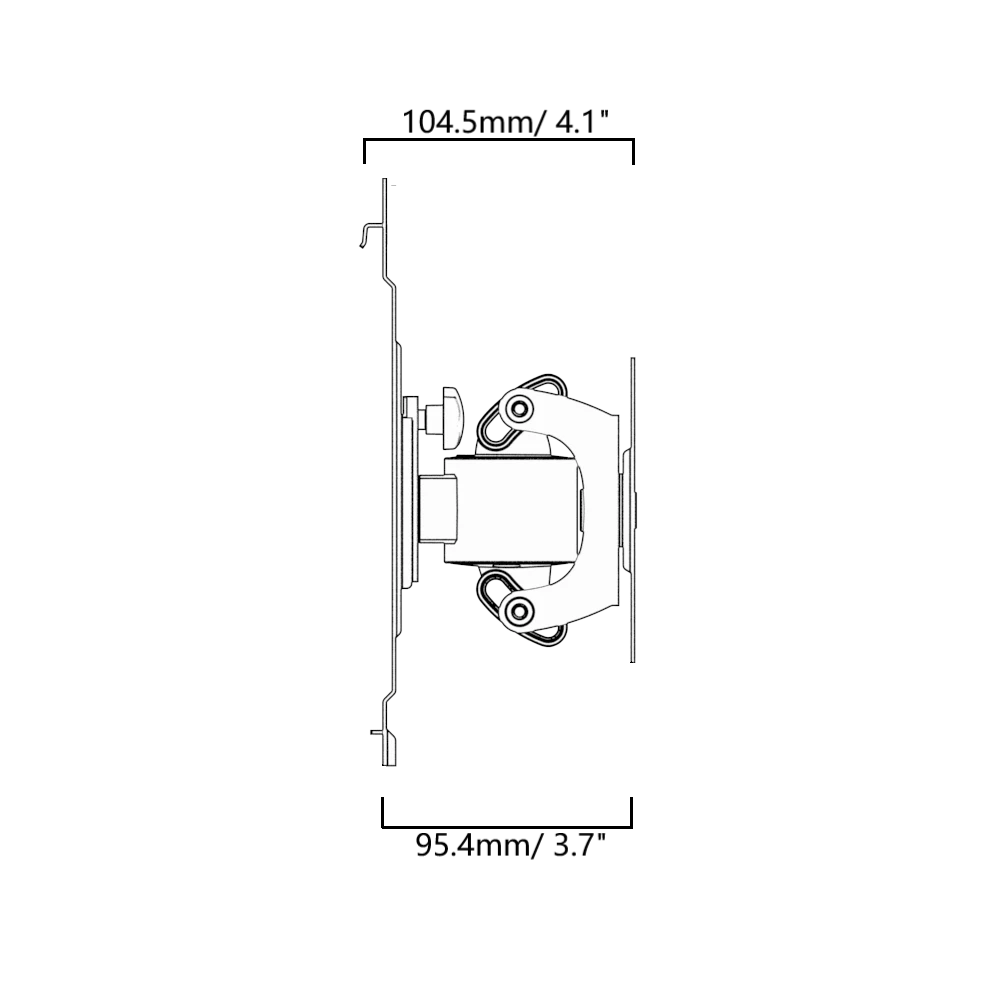

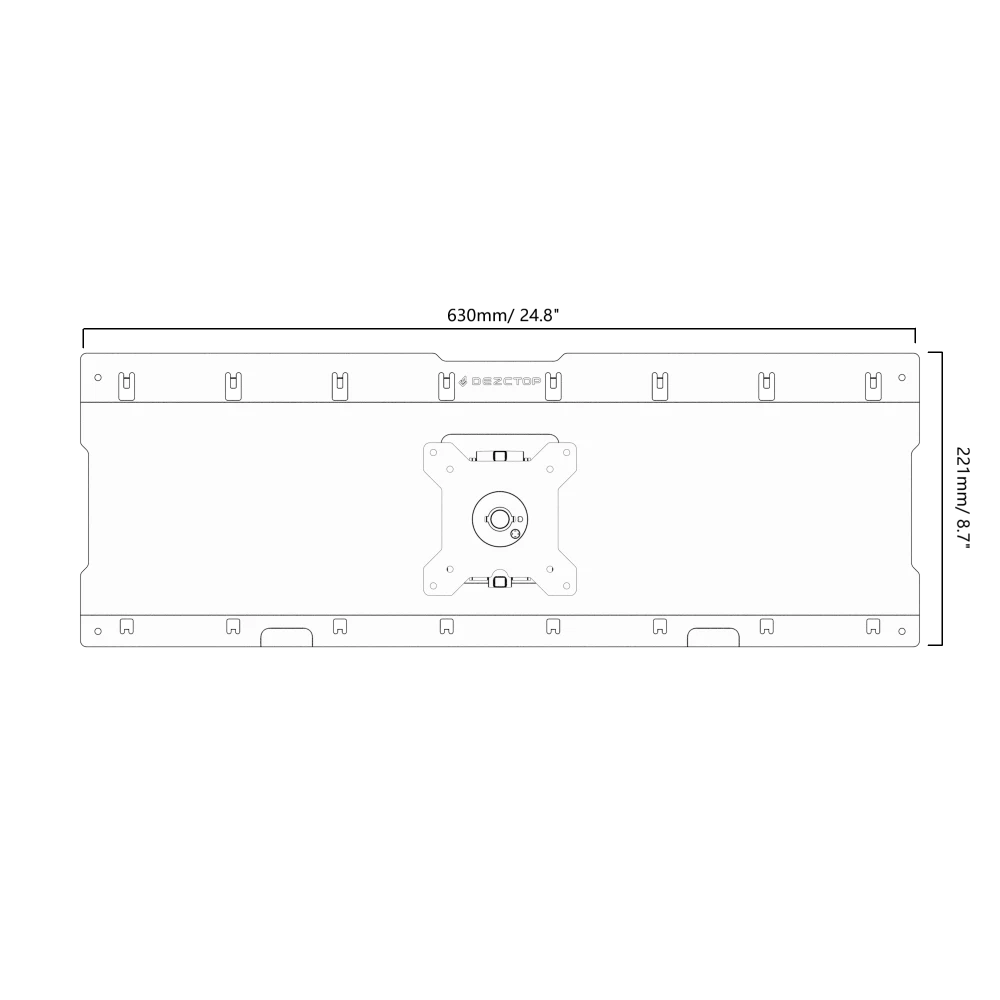

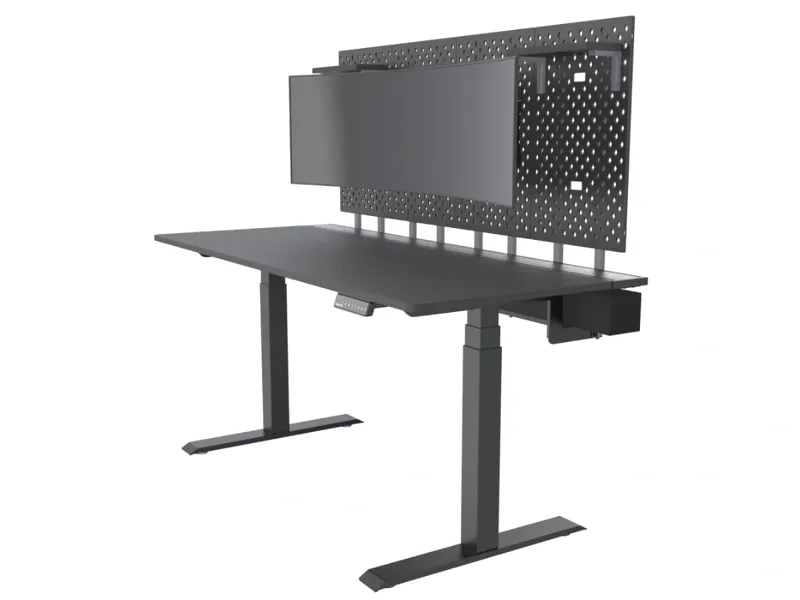

D-Board Monitor Mount - L
Model Number
DA-DBMONTL-BK1
EAN
4710578830744
Dimensions (W x D x H)
24.8 x 4.1 x 8.7in (630 x 104.5 x 221mm)
Screen Size
Flat: up to 43
Curved: up to 49, 32:9 Ultrawide
Weight Capacity
Flat - 15 kg (33.1 lbs)
Curved - 14 kg (30.9 lbs)
1500R: 13 kg (28.7 lbs)
1000R: 12 kg (26.5 lbs)
Swivel (Left/Right)
20°
Tilt (Down)
± 15°
Pivot
90° (Clockwise)
Compatibility & Max. Load
VESA MIS-D: hole pattern 100 x 100, 75 x 75mm
